Customer Part Number Description HTS Number
Cust Num Part Num Description HTS Number


Customer Number

Enter customer code
OR
Press F4 to display the Customer Locator to select and retrieve valid data.
Top

Part Number

Displays part number. Top

Description

Displays part description. Top

HTS Number

Enter HTS number
OR
Press F4 to display the HTS Locator to select and retrieve valid data.
Top

NAVIGATION

Press a function key (F10 to display menu)

F1 - Stop   Return to calling screen
F2 - Scroll back a screen
F3 - Scroll forward a screen
F4 - Inquire on HTS number
F5 - Locate
F7 - Insert a new line
F8 - Expand to Part Number Details

See Getting Started -   ScrollingToggling, or Locating   table data for information on these navigation techniques.

Top

STATUS

Read only.

See Getting Started -  Basic Screen Elements for more information.

Top

SCREEN ID

Read only.

See Getting Started -  Basic Screen Elements for more information.

Top

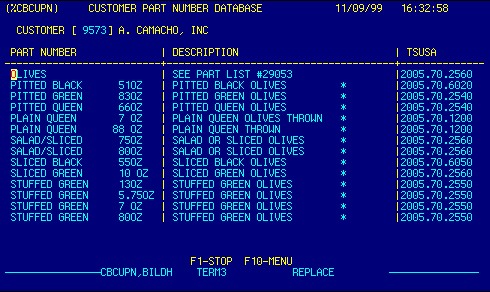

SCREEN NAME

Customer Parts Number Database

This is a standard AIRPEX browse table. It displays records from the Customer Parts database.

Part Number and HTS number are locator fields.

Place the cursor in one of these fields, type your search criteria, then press F5 to locate a record. If the data exists, it will be brought to the top of the table, and the records will be sorted on that field.

By default, this table opens in display only mode. This prevents unintended changes to the database. Authorized users may edit, add, or delete records in this table by first placing the database in edit mode, then making changes as appropriate.

Top

DATE/TIME

Read only.  Displays current system date & time.

See Getting Started -  Basic Screen Elements for more information.

Top
